工业洗衣机

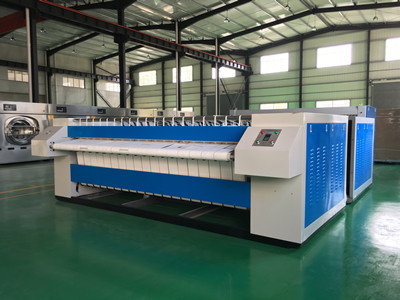

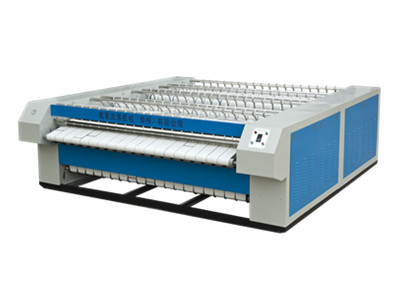

床单熨烫机Ironing machine

发布时间:2020-02-28点击量:396

烫平机、熨平机、床单被套熨烫机系列(电加热/蒸汽加热/燃气加热)型号:TPI-1800单滚,TPI-2200单滚,TPI-2500单滚,TPI-2800单滚,TPI-3000单滚,TPII-1800双滚,TPII-2200双滚,TPII-2500双滚,TPII-2800双滚,TPII-3000双滚,TPIII-2800双滚,TPIII-3000双滚,TPIII-3300双滚,TPIII-3000三滚,TPIII-3300三滚,TPIIII-3000四滚,TPIIII-3300四滚,TPIIIII-3000五滚,TPIIIII-3300五滚,TPIIIIII-3000六滚,TPIIIIII-3300六滚。

 系列烫平机采用蒸汽,传动采用调速电机,根据加热温度和织物厚度随意调节速度。

大滚(棍)筒采用优质不锈钢制造,表面经过磨削加工处理使织物磨损降低到最低。

运行可靠,采用减速器联接皮带轮及链轮传动,并配置传动涨紧机构,保证运行平稳。

 所有副辊采用喷锌处理,搞腐蚀能力强,经久耐用。

Ironing machine, ironing machine, sheet ironing machine series (electric heating / steam heating / gas heating) Model: TPI-1800 single roll, TPI-2200 single roll, TPI-2500 single roll, TPI-2800 single roll, TPI-3000 single roll, TPII-1800 double roll, TPII-2200 double roll, TPII-2500 double roll, TPII-2800 double roll, TPII-3000 double roll, TPIII-2800 double roll, TPIII-3000 double roll, TPIII- 3300 double rolls, TPIII-3000 three rolls, TPIII-3300 three rolls, TPIIII-3000 four rolls, TPIIII-3300 four rolls, TPIIIII-3000 five rolls, TPIIIII-3300 five rolls, TPIIIIII-3000 six rolls, TPIIIIII-3300 six rolls roll.


  The series ironing machine uses steam, and the drive uses a speed-regulating motor, which can adjust the speed at will according to the heating temperature and fabric thickness.



The large roll (roller) barrel is made of high quality stainless steel, and the surface is ground to reduce the wear of the fabric to a minimum.


Reliable operation, using a reducer to connect the pulley and sprocket drive, and equipped with a tensioning mechanism to ensure smooth operation.


  All auxiliary rollers are treated with zinc spray, which has strong corrosion resistance and is durable.

技术参数 TECHNICAL SPECIFICATION


型号ModelTPI-2500(单滚)TPI-2800(单滚)TPI-3000(单滚)TPII-2800(双滚)
最大熨平宽度(mm)Max Ironing Width2500280030002800
熨平速度(电/蒸汽)Ironing Speed0-60-60-60-6
最高加热温度(℃)Max Ironing Temprerature158158158158
蒸汽压力(Mpa)Steam Pressure0.4-0.60.4-0.60.4-0.60.4-0.6
蒸汽耗量(kg/h)Steam Consumption708090100
电加热功率(kw)Electric Heating Power273032.436
电机功率(kw)Motor Power1.51.51.51.5
额定电压(V)Rated Voltage380380380380
外形(长×宽×高 mm)Dimension(L.W.H)3150×1350×13503800×1350×13504200×1350×13503800×2500×1350
整机重量(kg)Net Weight2500280031003500


技术参数 TECHNICAL SPECIFICATION


型号ModelTPII-3000(双滚)TPIII-3000(三滚)TPIIII-3000(四滚)TPIIIII-3000(五滚)
最大熨平宽度(mm)Max Ironing Width3000300030003000
熨平速度(电/蒸汽)Ironing Speed0-220-220-220-22
最高加热温度(℃)Max Ironing Temprerature158158158158
蒸汽压力(Mpa)Steam Pressure0.4-0.60.4-0.60.4-0.60.4-0.6
蒸汽耗量(kg/h)Steam Consumption100110120120
电加热功率(kw)Electric Heating Power44465060
电机功率(kw)Motor Power2.22.22.22.2
额定电压(V)Rated Voltage380380380380
外形(长×宽×高 mm)Dimension(L.W.H)4250×2300×13504200×3500×13504250×4500×13504250×3500×1350
整机重量(kg)Net Weight3800450050005500
