工业洗衣机

床单折叠机Folding machine

发布时间:2020-02-28点击量:470

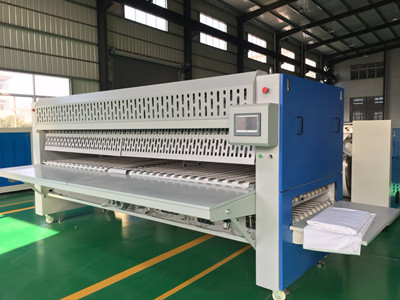

床单折叠机Folding machine



供床宾馆酒店床单被套折叠机(折叠机价格,折叠机厂家)

折叠机,床单折叠机、被套折叠机、毛巾折叠机、布草折叠机,折叠机型号:ZD-3000单通道五折,ZD-3000双通道五折,ZD-3300四通道五折,ZD-3300四通道五折,注:四通道可以用于折叠枕套。

性能简介

1、电脑板智能选择折叠折数,可达到两横三纵共五折的折叠功能。最大折叠范围3000*3000mm,可与不同型号的烫平机配套使用,达到自动折叠各种布草的效果。

2、引进行业领先设计理念,该款折叠机配有四个电机两个变频器,优化分工、管理了折叠机的各个折叠步骤,有效的提高了布草的折叠率。

3、机器采用PLC可编程控制器,抗干扰性强。智能化的120度可旋转液晶显示触摸屏操作系统,具有良好的人机界面,完善的自诊断功能和安全保护系统便于机器的日常使用和维护。

4、国内首创的防静电挡板及防静电传送带很好的预防了布草的静电现象,增加了机器的工作可靠性和稳定性。

5、独特的五折吹气法,有别于行业的刀送法,有效的保护了布草,延长了布草的使用寿命。

Folding machine for bed hotel hotel sheets quilt cover (folding machine price, folding machine manufacturer)


Folding Machine, Sheet Folding Machine, Quilt Cover Folding Machine, Towel Folding Machine, Linen Folding Machine, Folding Machine Model: ZD-3000 single channel 50% off, ZD-3000 double channel 50% off, ZD-3300 four channel 50% off, ZD -3300 Four-way 50% off. Note: Four-way can be used to fold pillowcases.


Performance Introduction


1. The computer board intelligently selects the number of folding folds, which can achieve a folding function of a total of 50% in two horizontal and three vertical directions. The maximum folding range is 3000 * 3000mm, which can be used with different models of ironing machines to achieve the effect of automatically folding various linens.


2. Introducing the industry-leading design concept. This folding machine is equipped with four motors and two frequency converters, which optimizes the division of labor and manages each folding step of the folding machine, effectively improving the folding rate of linen.


3. The machine adopts PLC programmable controller with strong anti-interference. Highly intelligent 120 degree rotatable LCD touch screen operating system, with good human-machine interface, complete self-diagnostic function and safety protection system are convenient for daily use and maintenance of the machine.


4. The first domestic anti-static baffle and anti-static conveyor belt can prevent the static phenomenon of linen, and increase the reliability and stability of the machine.


5. The unique 50% air blowing method is different from the knife feeding method in the industry, which effectively protects the linen and extends the life of the linen.

ZDJ-3300床单、被套折叠机  (五折)

ZDJ-3300 Sheet and Quilt Folding Machine (50% off)

参数型号

单位

ZD3300/ZD3300/

最大折叠长度

mm

3200

最大折叠宽度

mm

3000

工作能力

m/min

30

使用气源压力

MPa

0.5-0.7

电源

V/P/Hz

380/3/50

耗电量

kw/h

2.0

压缩空气消耗量

L/min

80

电机功率

kw

1.5kw+0.55kw+0.55kw

外接电源线径

mm2

4

配用压缩机排量

m3/min

0.3

外型尺寸(长××高)

mm

4500×2950×1990

整机重量

kg

1500

注:由于设备不断升级换代,本资料中的产品参数及外观仅供参考,如有变动,以实际产品为准!
